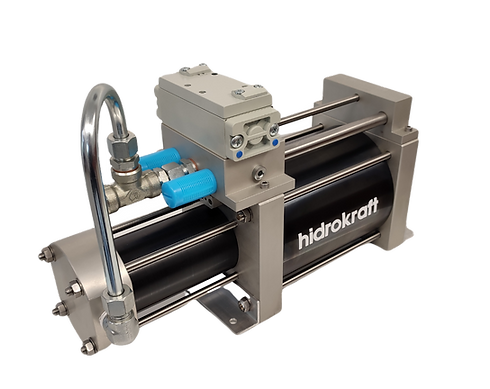

GBS series
AIR DRIVEN GAS BOOSTER
pressures in excess of 80 bar
Please refer to the brochure for further details
The GBS series of gas boosters are single acting,
single 125mm air drive units that are capable of pressures in excess of 1,160 PSI / 80 BAR.
The Hidrokraft booster model number reflects the unit’s actual pressure ratio.
The outlet stall pressure is easy to set by adjusting the air drive pressure and by simply multiplying the pressure ratio by the air drive pressure.
Features
-
Aluminum alloy wet end materials of construction
-
Specialised construction materials available
-
Single acting
-
Single air drive head Ø 125 mm
-
Polyurethane, NBR pressure seals as standard
-
Compact and lightweight
-
Suitable for most hazardous areas
-
Pressure ratio 1:4, 1:7, 1:10
-
Suitable for air drive pressures from 3 to 8 bar
-
Working pressure up to 80 bar
Field of application
-
Diving Industry for the transfer of various Dive Gases
-
Safety and Rescue Industry for filling Oxygen
-
Industrial Gas Manufacturers and Suppliers
-
Defence Industry Suppliers
-
Civilian and Military Aerospace Industry
-
Military Naval Industry
-
Valve Testing Industry
-
Gas Assisted Injection Mouldings Industry
-
Space (Satellite Launching) Industry
GBS serie Gas Booster Range
GBS4
Actual Ratio 4:1
Displacement Per Cycle 310 cc
Max Outlet Pressure 40 bar
Connection Size 3/8" / 3/8"
Inlet / Outlet
GBS7
Actual Ratio 7:1
Displacement Per Cycle 200 cc
Max Outlet Pressure 56 bar
Connection Size 3/8" / 3/8"
Inlet / Outlet
GBS10
Actual Ratio 10:1
Displacement Per Cycle 150 cc
Max Outlet Pressure 80 bar
Connection Size 3/8" / 3/8"
Inlet / Outlet
